136-5017-5067
| Specifications | |||
| Number of pins: | 24 Pins | Key Position: | A |

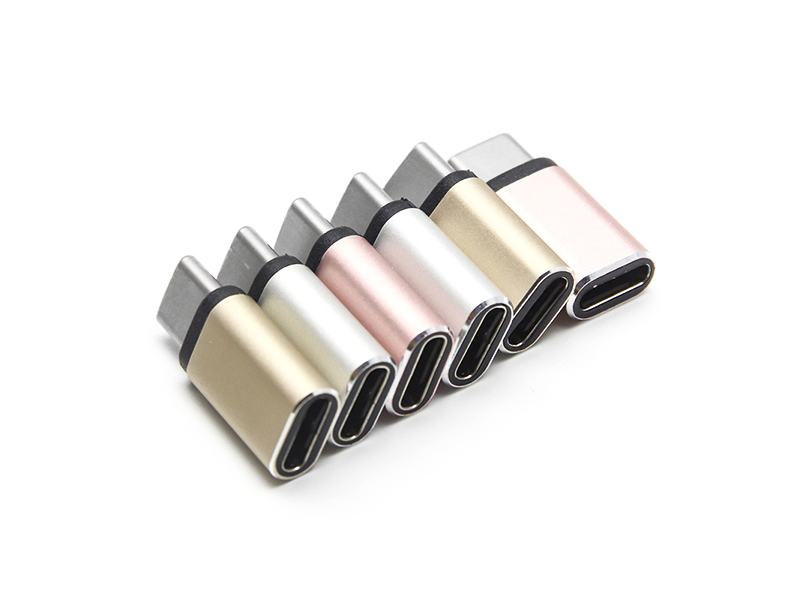

| Left Connector: | TYPE C Plug | Right Connector: | TYPE C Socket |
| AWG Gauge: | - | Connection Type | Plug and unplug |
| Wires & Cables Length: | - | ||
| Material | |||
| Housing & Insulation: | LCP Black | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | Aluminum alloy | Sealing: | - |
| Shielding: | Yes | Overmolding: | - |
| Wires & Cables Conductor: | - | Wires & Cables Jacket: | - |
| Technical Characteristics | |||
| Rated Current: | 3A | Rated Voltage: | 5V |
| Rated Temperature | -40°C ~ + 80°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | - | Production Design Standards: | - |
| Application | |||
