| Specifications | |||
| Number of pins: | 2~16 Pins | Key Position: | - |

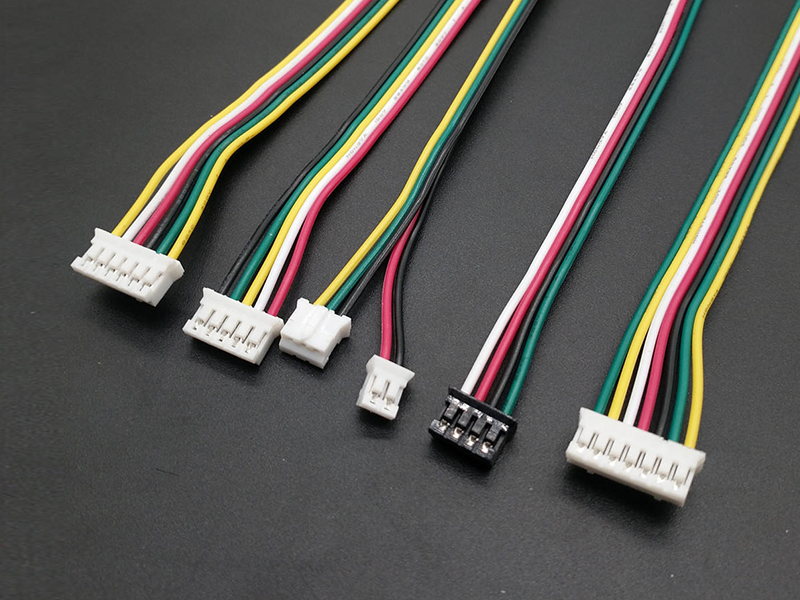

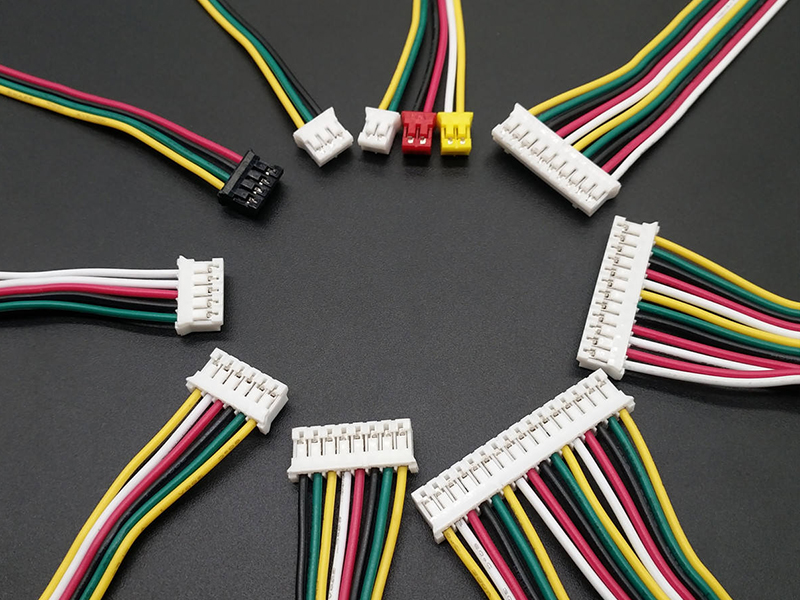

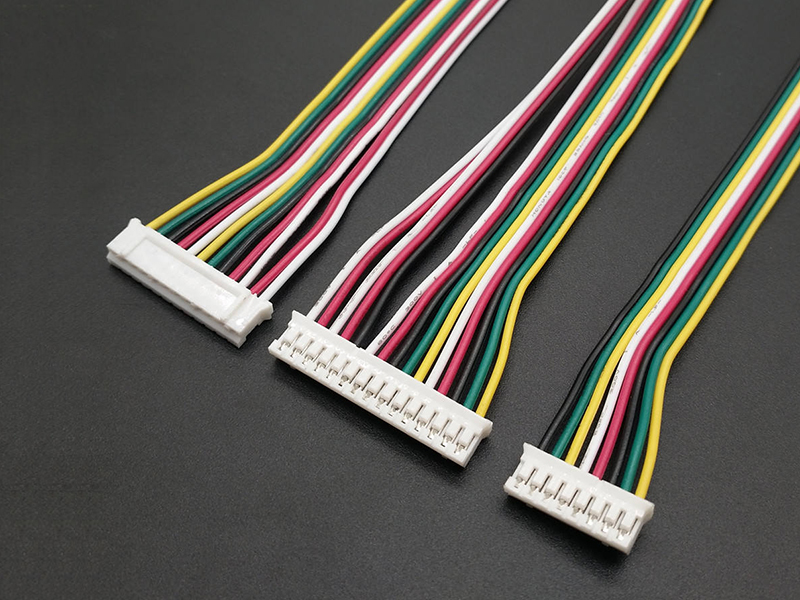

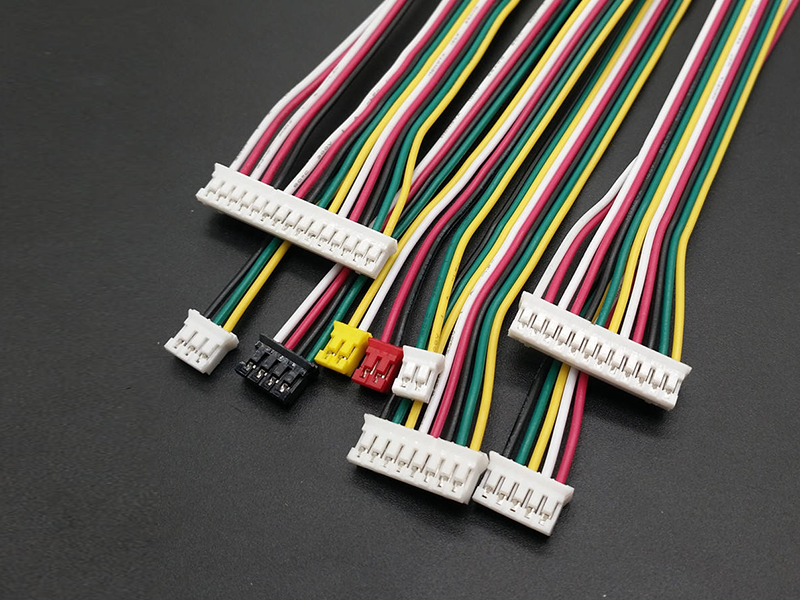

| Left Connector: | JST PHR | Right Connector: | - |
| AWG Gauge: | 24 AWG ~ 30 AWG | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customized length | ||
| Material | |||
| Housing & Insulation: | PA66, White | Contacts: | Phosphor Bronze,Tin-Plated |
| Shell: | - | Sealing: | - |
| Shielding: | - | Overmolding: | - |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC |
| Technical Characteristics | |||
| Rated Current: | 2A | Rated Voltage: | 100V AC,DC |
| Rated Temperature | -25°C ~ + 85°C | Flame Retardant Grade: | UL94V-0 |
| Insulation Resistance: | 1000 MΩ Min | Contact Resistance: | 10mΩ Max |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | - | Production Design Standards: | IPC620 |
| Application | |||
| BOMCAN FOCUSING ON CUSTOMIZED PRODUCTION OF CABLES CONNECTORS BOMCAN PROVIDE YOU WITH PROFESSIONAL CABLE HARNESS ENGINEERING SOLUTIONS | |||
